Description

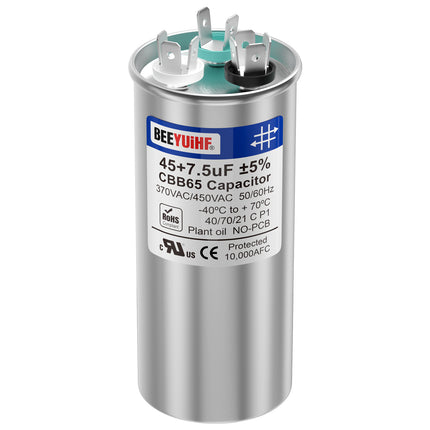

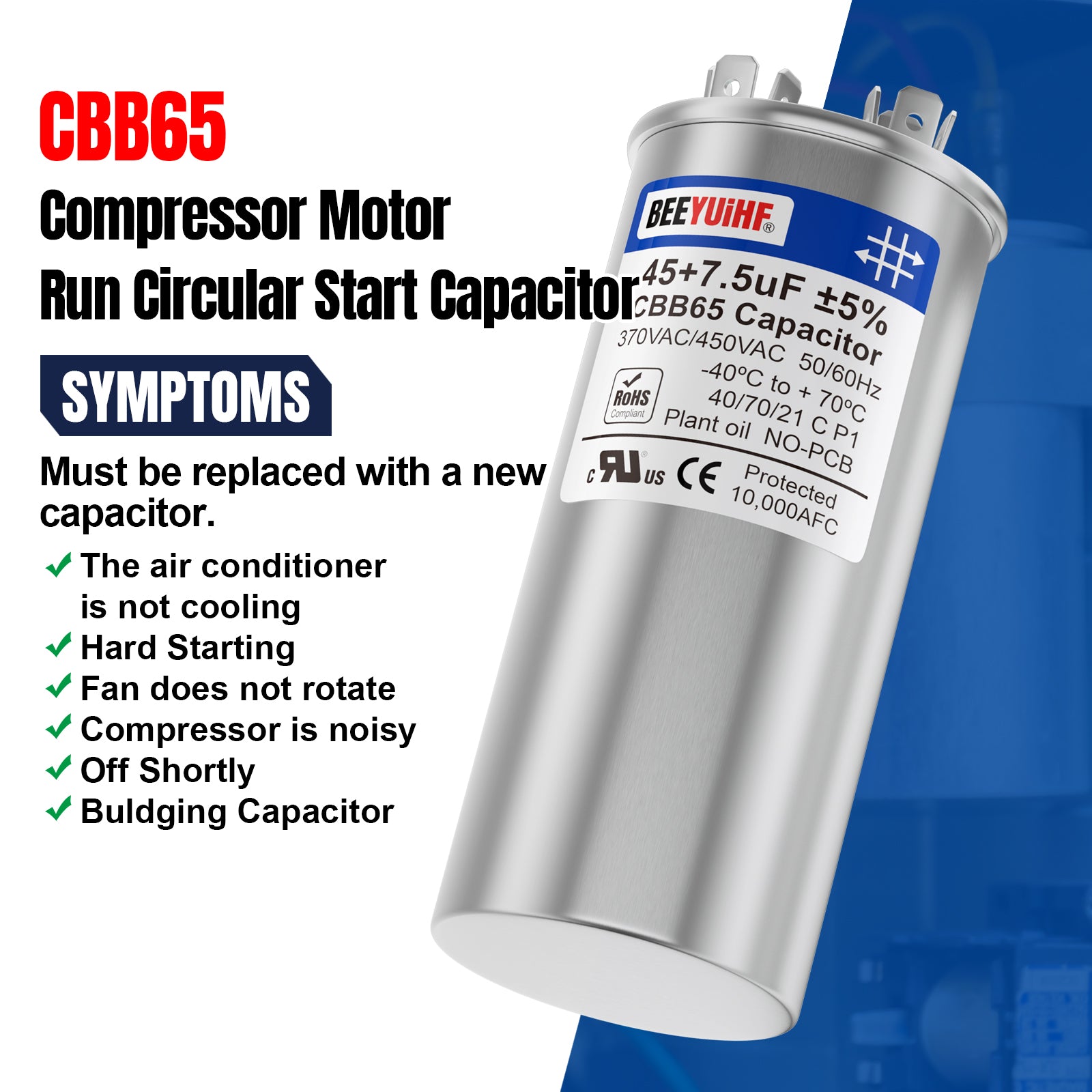

BEEYUIHF 45+7.5uF ±5% 50/5 MFD 370/440/450V AC 50/60Hz CBB65 Capacitor Dual Run Start Round Capacitor for AC Motor/ AC Unit Fan Motor Start / Pool Pump / Heat Pump Air Conditioner

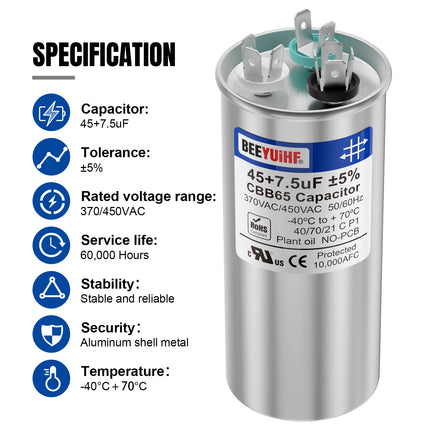

Technical parameters:
Model：CBB65
Capacity：45+7.5uF
Size：Diameter (1.97inch / 50mm) x Height (4.92inch / 125mm).
Tolerance：±5%
Frequency: 50 / 60Hz
Rated voltage：370VAC 440VAC 450VAC
Operating temperature：-40 ℃ to +70℃/-104℉ to+158℉
Dielectric Material: metallized polypropylene film
Shell material: metal
Features:
1.Cylindrical metal-aluminum shell, small size and light weight.
2. Excellent electrical performance, low loss, with good self-healing characteristics.
3. Pressure explosion-proof device inside, safe and reliable to use.
This capacitor is used for start-up and operation of AC motors with frequency of 50Hz/60Hz such as Industrial Grade Replacement for Central Air-Conditioners, Heat Pumps, Condenser Fan Motors, and Compressors.It is small in size, lightweight, heat resisting and anti-explosion.
45+7.5uF means the Dual-Run capacitor rating for AC, 45 µF/uF/MFD starts the compressor, while 7.5 µF/uF/MFD starts the fan.

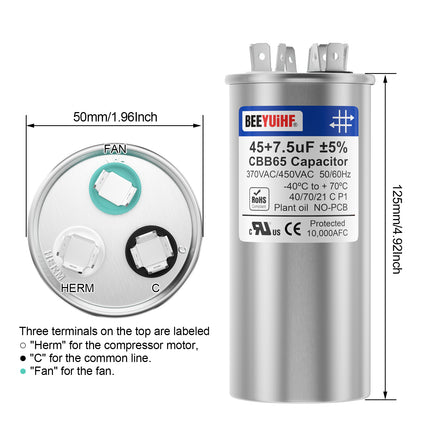

BEEYUIHF CBB65 Capacitor size measures: Diameter (1.97inch / 50mm) x Height (4.92inch / 125mm).
Operating temperature: -40 ℃ to +70℃/-104℉ to+158℉; Frequency: 50/60 Hz AC Electric; Safety rated: 10,000 AFC; Tolerance: ±5%

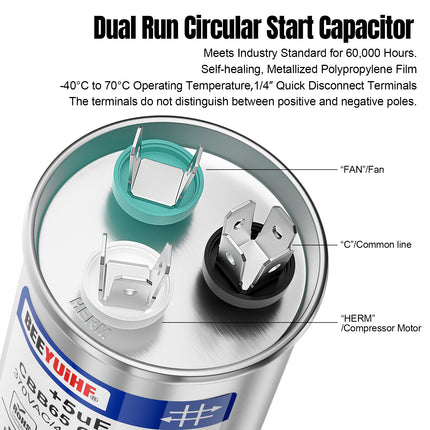

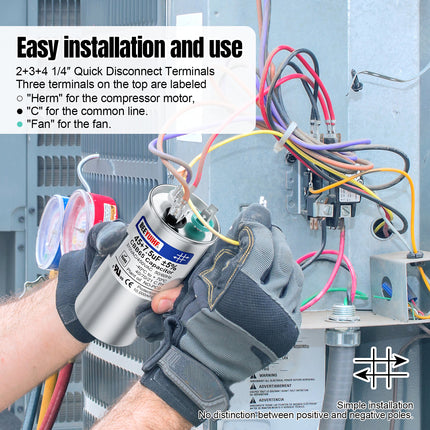

Simple installation: Direct replacement, The three terminals correspond:""Herm""for the compressor motor, ""Fan"" for the fan, and""C""for the common line.
Versatile Application: Suitable for use as a run capacitor for AC motors or as a start capacitor for fans and condensers. Such as: air conditioner compressors, washing machine motors, power tools, pump motors, dehumidifiers, etc.

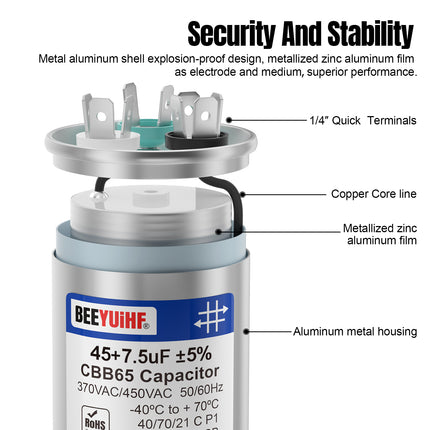

CBB65 Capacitors Performance features: Good electrical performance, low loss, with good self-healing (SH) characteristics. Pressure explosion-proof device inside, safe to use.
