Description
BEEYUIHF Lead Free Solder Paste, 138 Low Temp Solder Paste, Sn42 Bi58 Solder Flux, Tin Cream, welding Flux, For LED PCB,solder paste,solder flux paste,138 solder paste,low temp solder paste,Lead-free solder paste,smd solder paste,welding paste,solder paste flux,138 degrees soldering tin,paste flux,soldering paste,no-clean solder paste,paste,welding tin (1.05oz/30g)
Sn42 Bi58 Solder Paste：
Low temperature Solder Paste, melting point: 138°C (280F).
Technical Parameters:

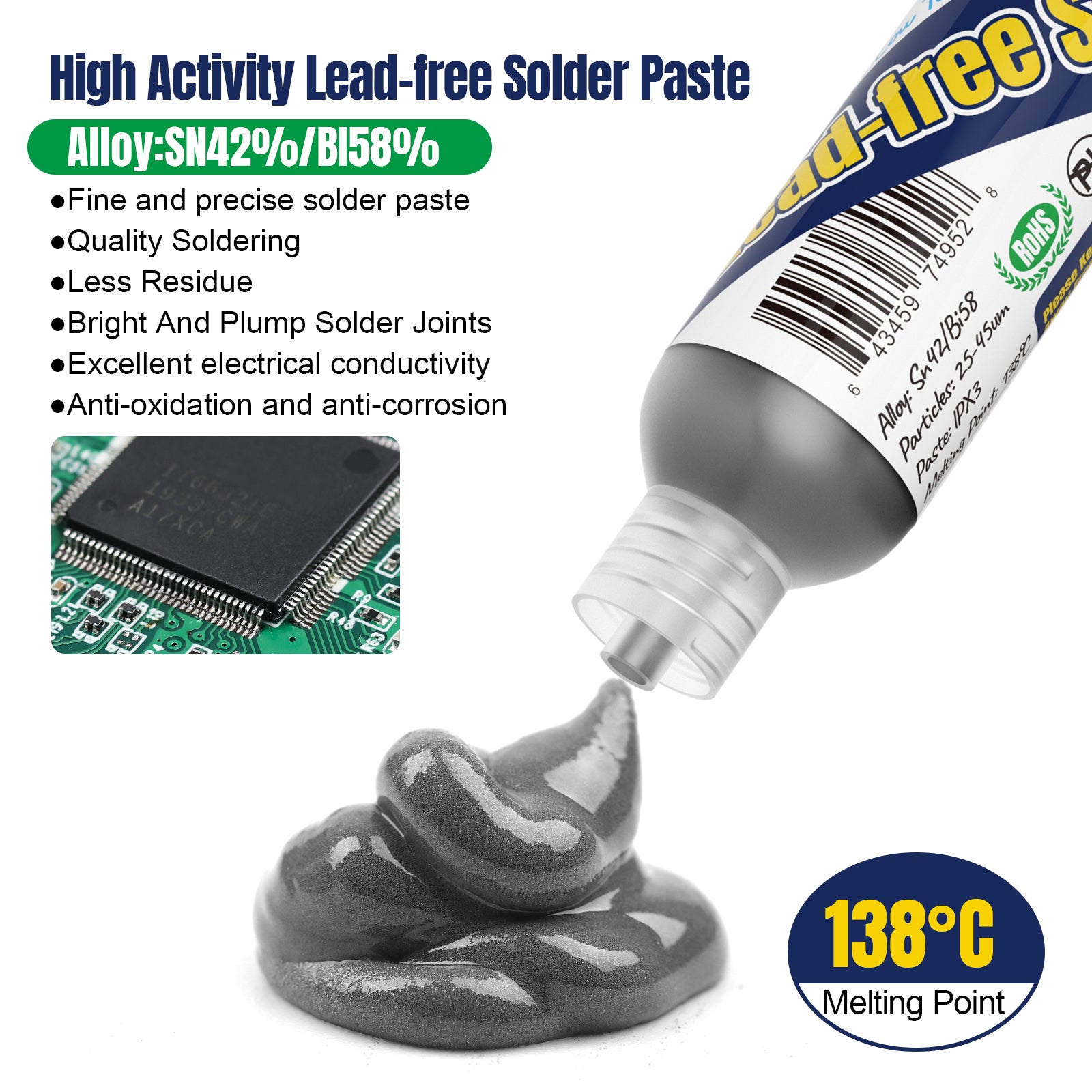

Product composition: Sn:42%, Bi:58%.
Model: BEEYUIHF solder tin paste

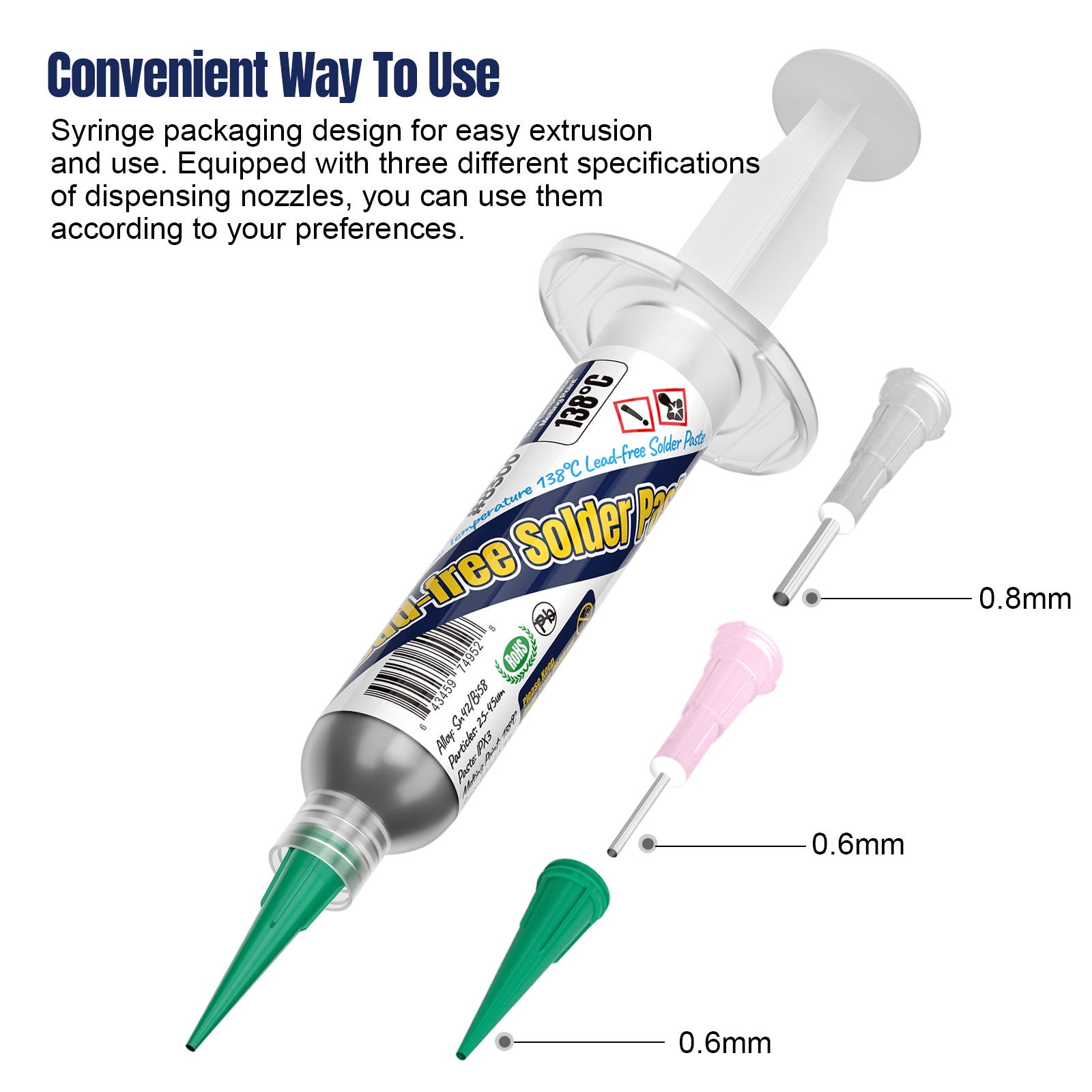

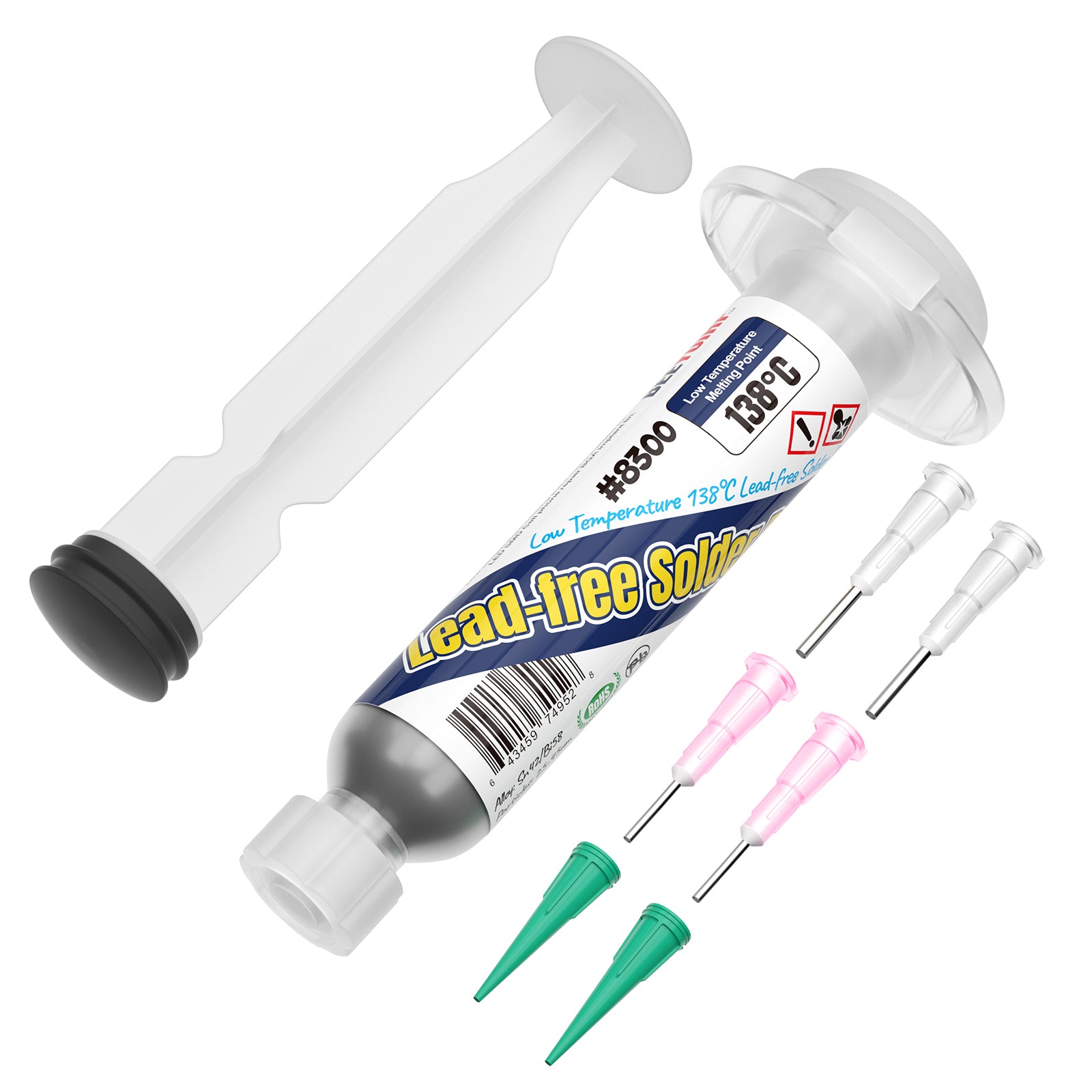

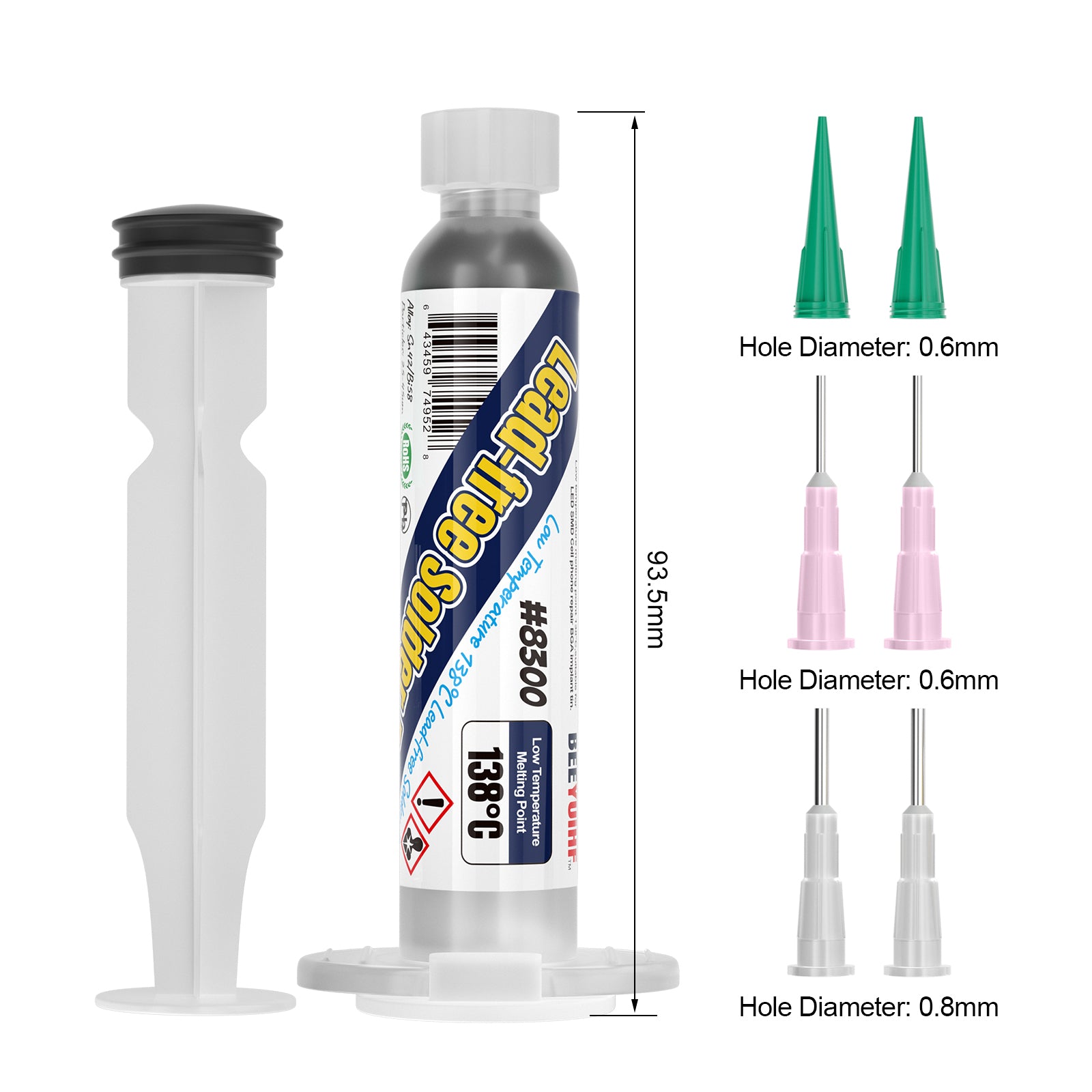

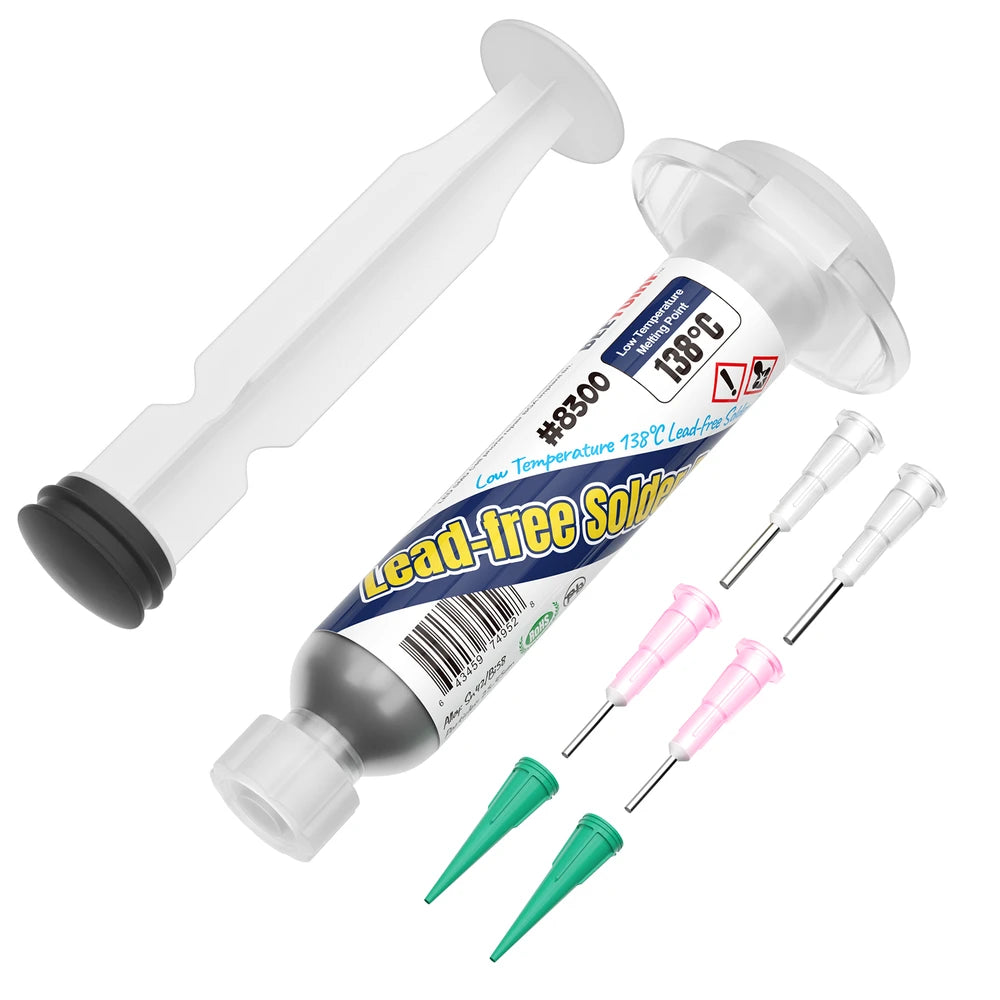

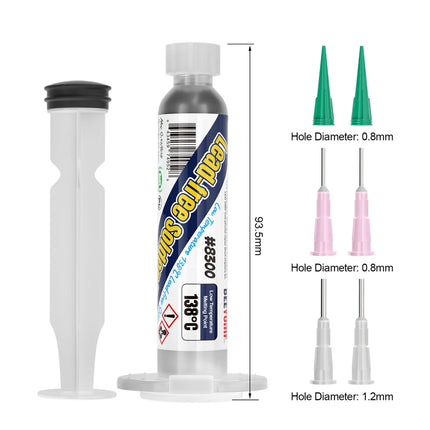

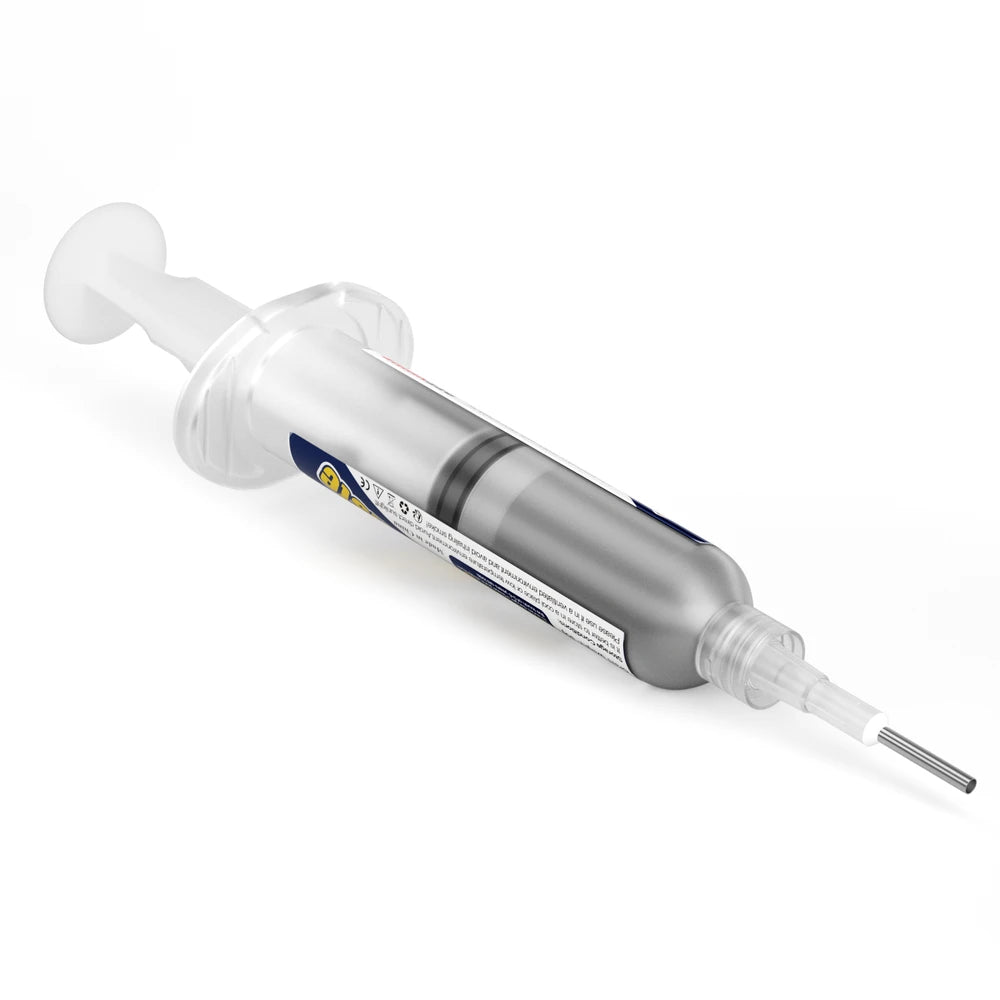

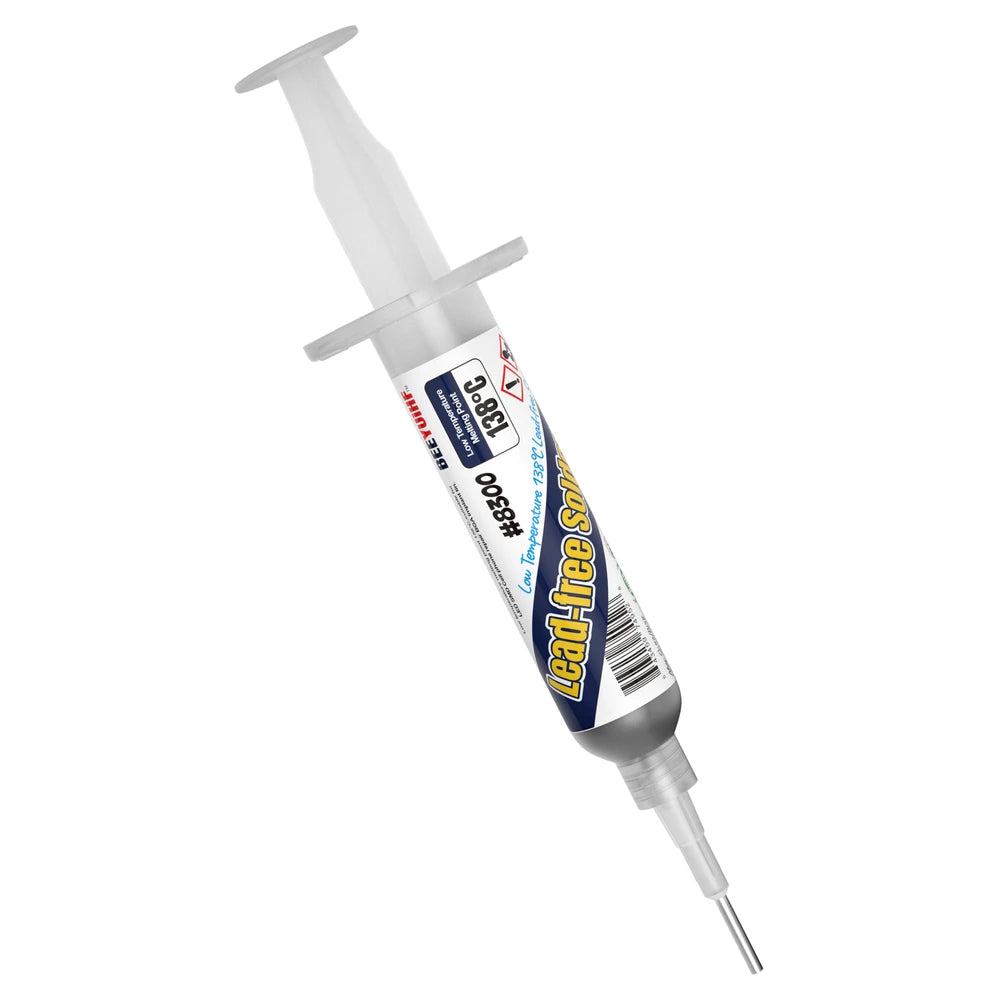

Gross weight: 1.05oz/30g syringe
Melting Point: 138°C (280F)
Particle size: #3 (25-45 microns)
Storage temperature: 0-10℃
wettability: Bright and uniform solder joints.
Printability: eliminates missing pits and lumps during printing
Property: reflow does not create tin beads and tin bridges
Lifetime: Can print continuously for more than ten hours at room temperature without producing tin beads

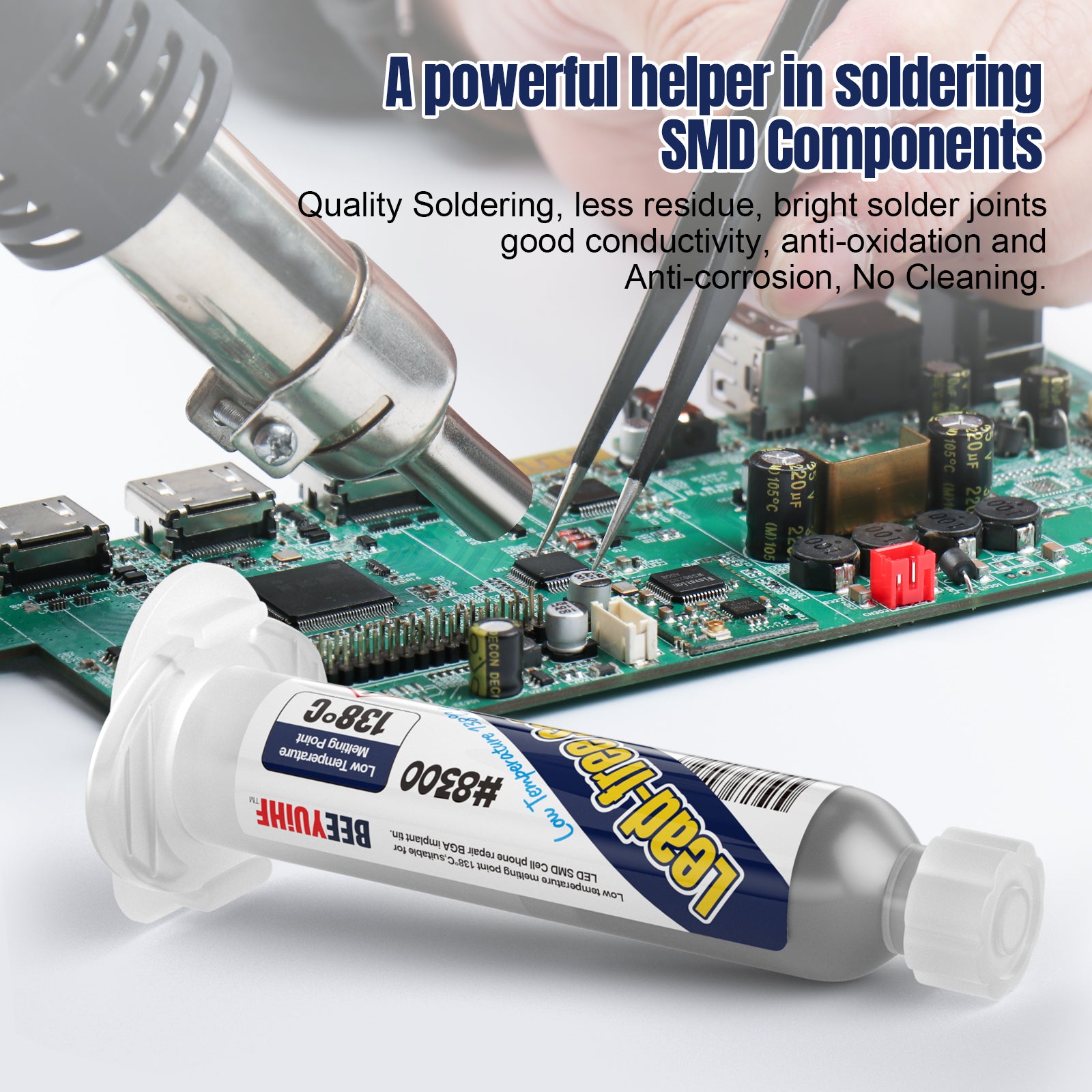

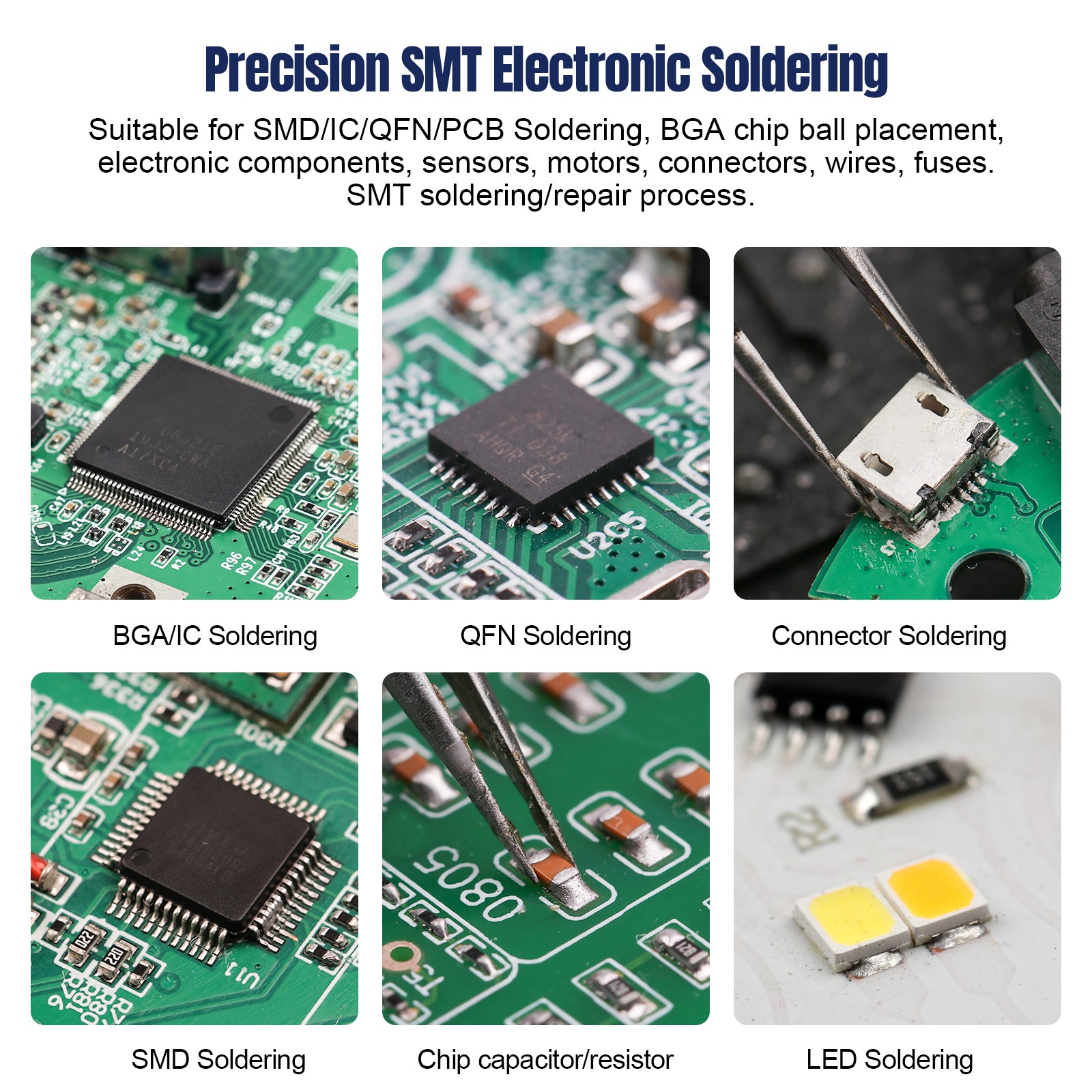

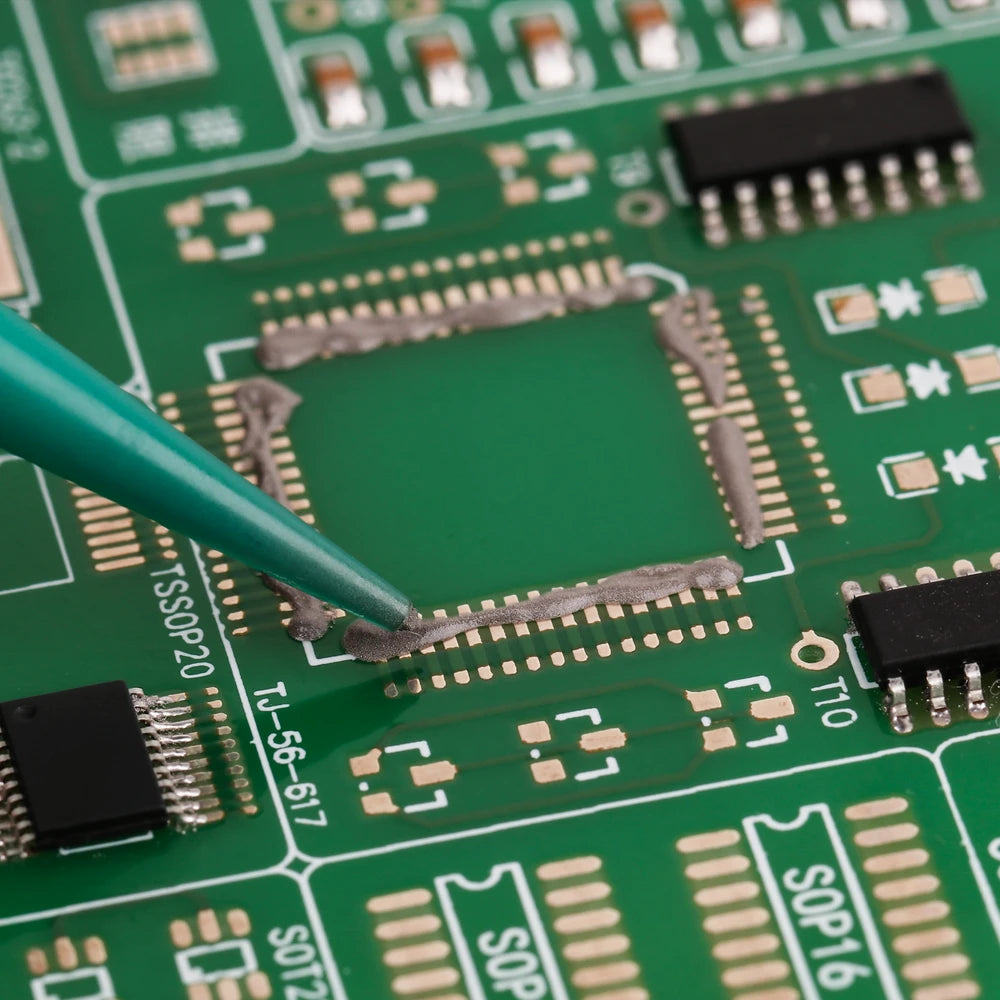

Application: welding of radiator modules & LED welding & high frequency welding & PCB BGA CPU SMD Rework Tools
Melting point 138℃ solder paste:
1、Excellent printability, eliminating the omission of depression and knot fast phenomenon in the printing process
2、Good wettability, bright and even full solder joints
3、without tin beads and tin bridges when soldering back
4, long-term paste life, long stencil printing life
5, suitable for wider process and fast printing
6、Low temperature solder paste is mainly used for heat sink module welding, LED welding, high frequency welding, etc.
Application range of low temperature solder paste:
Melting point of 138 ℃ solder paste is called low temperature solder paste, when the SMD components can not withstand the temperature of 200 ℃ and above and the need for SMD reflow process, the use of low temperature solder paste for soldering process. Up to protect can not withstand high temperature reflow soldering original and PCB, especially suitable for LED, its alloy composition is tin-bismuth alloy. Low-temperature solder paste reflow soldering peak temperature at 170-200 ℃.
what is the solder paste?
Tin paste is the liquid after the melting of tin bar. Tin paste refers to the slurry produced by grinding metal tin into a very fine powder and adding flux. It is also called tin slurry. In general, it is most commonly used in wave soldering machines, reflow soldering machines, tin furnaces, etc.
138°C (280F) Melting Point
Low temperature tin is often used for the maintenance of electronic products. The melting point of Low Temperature Tin is 138 degrees Celsius, the particle size of tin powder is between 25 and 45 microns. Low temperature tin is mainly used for elements that can not withstand high temperature device.
